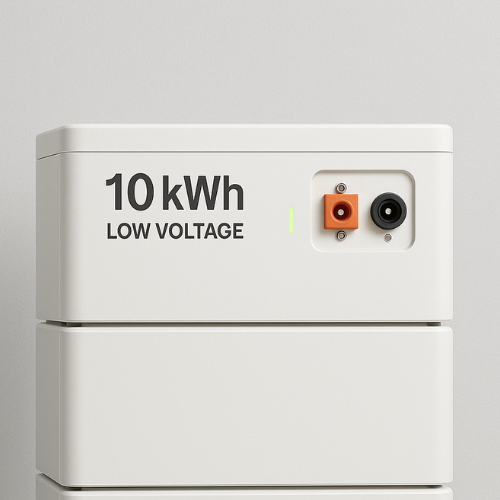

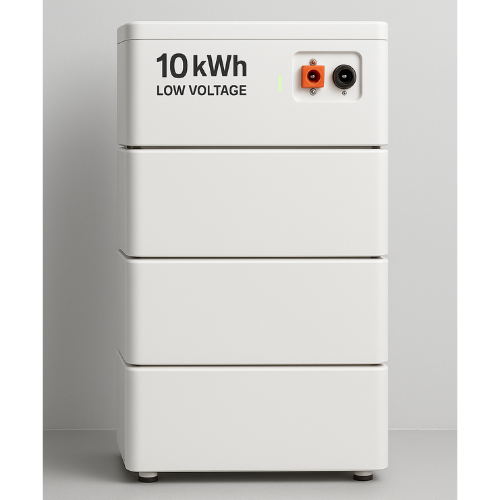

10kWh Low Voltage Stacked lithium-ion battery system
Galvanica Energy Lithium Battery Solar Storage
Model:Galvanica 5000U-5kwh/10kwh
Voltage:51.2v
Life Cycles:6500 Cycles
Life Time:15 years
manufacturer of lithium iron phosphate battery systems, Galvanica ENERGY has provided various battery solutions for nearly all kinds of ESS applications. Thanks to our self-developed core technology in cells/BMS/system design, vanica ENERGY has delivered more than 138+ countries serving 100,000+ users.
| Model No | Galvanica5000U |
|---|---|
| Voltage | 51.2V |
| Capacity | 100Ah |
| Energy | 5.12kWh |
| Operation Voltage | 46–56Vdc |
| Max Charging Voltage | 56Vdc |
| Max Charging Current | 100A |
| Max Discharging Current | 150A |
| Max Power | 5120W |
| Dimension (L×W×H) | 580 × 390 × 200 mm |
| Weight | 65kg |
| Cycle Life (25±2℃, 0.5C/0.5C, 80%EOL) | ≥6500 |
| Certification | IEC62619, CE-EMC, UN38.3, MSDS |
5.12kWh / 10.24kWh / 20.48kWh Low-voltage Stack Energy Storage Lithium Battery
The Low-voltage stack energy storage lithium battery (Galvanica Energy Storage System) is suitable for residential energy storage. One set can power your entire home. With high energy density and multiple mounting options, this stack rack battery saves space and adapts to all kinds of installations. Its modular design fits your energy demand today and in the future.
Vertical industry integration ensures more than 6500 cycles at 80% DoD. Built with safe lithium iron phosphate battery cells.
Each battery includes an independent BMS system that manages power output smartly and efficiently.
The modular design gives end customers the flexibility to choose capacity. Deliver up to 163.8kW using a maximum of 16 parallel-connected modules (10.24kWh each).
Plug-and-play functionality minimizes installation time and cost. Compact, modern design blends perfectly with home environments.
Fully compatible with most available hybrid inverters.
Certified with IEC62619, UN38.3, ROHS, and CE-EMC.
